CB - Convoluted Teflon® Braided
- Unpigmented, heavy wall Teflon® PTFE liner
- Self cleaning open pitch helical convolutions
- Seamless vacuum formed liner
- 316 Stainless steel braid reinforcement
- Options available: conductive liner, alternate braid
materials, flare-through design
Benefits:
- Very short bend radii
- Convolutions drain easily and self clean in vertical orientations
- Unlimited fitting options
- Tough braided cover shrugs off most external environmental hazards

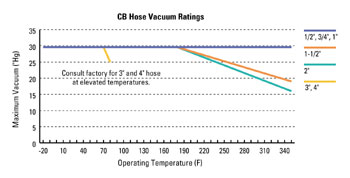

- Full vacuum up to 2"
Applications:
- High Pressure AND high vacuum with appropriate fittings
Connections:
- Flanged
- Cam and Groove
- Sanitary
- NPT

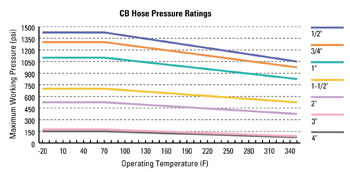

| Nominal Size | ID | OD | Bend Radius | Working Pressure @ 70°F | Burst Pressure @ 70°F | Natural Part Number | Conductive Part Number | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | Inch | MM | Inch | MM | Inch | MM | PSI | BAR | PSI | BAR | ||
| 1/2 | 15 | 0.470 | 11.9 | 0.748 | 19.0 | 2 | 50.8 | 1425 | 98.2 | 5700 | 393.0 | 08-CB-W | 08-CB-B |
| 3/4 | 20 | 0.720 | 18.3 | 1.048 | 26.6 | 2.75 | 69.9 | 1300 | 89.6 | 5200 | 358.5 | 12-CB-W | 12-CB-B |
| 1 | 25 | 0.970 | 24.6 | 1.354 | 34.4 | 4 | 101.6 | 1100 | 75.8 | 4400 | 303.3 | 16-CB-W | 16-CB-B |
| 1-1/2 | 40 | 1.540 | 39.1 | 2.034 | 51.7 | 6 | 152.4 | 700 | 48.3 | 2800 | 193.0 | 24-CB-W | 24-CB-B |
| 2 | 50 | 1.970 | 50.0 | 2.464 | 62.6 | 7.5 | 190.5 | 525 | 36.2 | 2100 | 144.8 | 32-CB-W | 32-CB-B |
| 3 | 50 | 2.913 | 74.0 | 3.702 | 94.0 | 14 | 355.6 | 175 | 12.1 | 2100 | 144.8 | 48-CB-W | 48-CB-B |
| 4 | 50 | 3.937 | 100.0 | 5.000 | 127.0 | 16 | 406.4 | 150 | 10.3 | 2100 | 144.8 | 64-CB-W | 64-CB-B |
NOTE: In an assembly, the pressure ratings of fittings may be less than hose pressure ratings.
