CHB - Hastelloy® Braided Convoluted Hose of Teflon®
- Extra-thick, "seamless" helical convoluted Teflon®
- Self cleaning open pitch helical convolutions
- Seamless vacuum formed liner
- Braided with Hastelloy® C276 heavy gauge wire braid
- Options available: conductive liner, alternate braid
materials, flare-through design
Benefits:
- Vacuum formed in an open pitched, helical design for easy cleaning

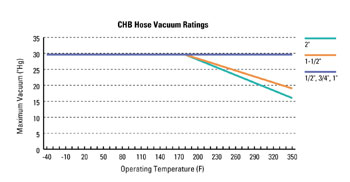

- Hose is rated for both medium pressure and full vacuum applications
- Crush resistant and easy to flex
- The Hastelloy® C276 braid is more resistant to corrosion by most hydrocarbons
Applications:
- Hose is designed for application requiring extremely flexible hose assembly conveying chemicals/acids that are permeable
- Designed also for harsh atmospheric conditions
Connections:
- Flanged
- Cam and Groove
- Sanitary
- NPT

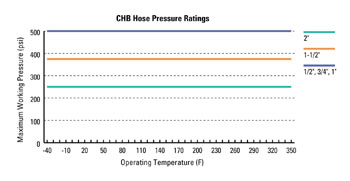

| Nominal Size | ID | OD | Bend Radius | Working Pressure @ 70°F | Burst Pressure @ 70°F | Natural Part Number | Conductive Part Number | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | Inch | MM | Inch | MM | Inch | MM | PSI | BAR | PSI | BAR | ||
| 1/2 | 15 | 0.470 | 11.9 | 0.748 | 19.0 | 2 | 50.8 | 500 | 34.5 | 2500 | 172.4 | 08-CHB-W | 08-CHB-B |
| 3/4 | 20 | 0.720 | 18.3 | 1.048 | 26.6 | 2.75 | 69.9 | 500 | 34.5 | 2500 | 172.4 | 12-CHB-W | 12-CHB-B |
| 1 | 25 | 0.970 | 24.6 | 1.354 | 34.4 | 4 | 101.6 | 500 | 34.5 | 2500 | 172.4 | 16-CHB-W | 16-CHB-B |
| 1-1/2 | 40 | 1.540 | 39.1 | 2.034 | 51.7 | 6 | 152.4 | 375 | 25.9 | 1875 | 129.3 | 24-CHB-W | 24-CHB-B |
| 2 | 50 | 1.970 | 50.0 | 2.464 | 62.6 | 7.5 | 190.5 | 250 | 17.2 | 1250 | 86.2 | 32-CHB-W | 32-CHB-B |
NOTE: In an assembly, the pressure ratings of fittings may be less than hose pressure ratings.
Content Copyright Crane Co., used with permission
Teflon® is a registered trademark of E.I. du Pont de Nemours and Company.
