TMH-M - Monel® Metal Hose, Teflon® Lined
- Primary Containment: unpigmented smooth bore Teflon® PTFE liner
- Secondary containment: TMH-M - Monel® metal hose
- TMH-M - Monel® braid and flange retainer
- Flare-through design
- Numerous flanged fitting options: 150#, 300#, ductile iron, 316 stainless steel, epoxy coated forged steel, galvanized ductile iron
Benefits:
- Secondary containment
- Handles very aggressive media
- Lengths up to 20 feet
- Flare through design ensures full corrosion resistance
Applications:
- Applications carrying aggressive chemicals needing secondary containment or where media permeation reacts with the atmosphere or shell

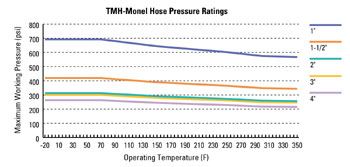

- High working pressure at elevated temperature
Connections:
- Flanged
Optional vent systems
- Vent hole
- Vent coupling 1/8" female pipe
- Hastelloy® leak detection system
Nominal Size | ID | OD | Bend Radius | Working Pressure @ 70°F | Burst Pressure @ 70°F | Part Number | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Inch | DN | Inch | MM | Inch | MM | Inch | MM | PSI | BAR | PSI | BAR | |
1 | 25 | 0.875 | 22.2 | 1.590 | 40.4 | 12 | 304.8 | 692 | 47.7 | 2768 | 190.8 | Consult Sales |
1-1/2 | 40 | 1.375 | 34.9 | 2.270 | 57.7 | 15 | 381.0 | 419 | 28.9 | 1676 | 115.5 | Consult Sales |
2 | 50 | 1.875 | 47.6 | 2.910 | 73.9 | 21 | 533.4 | 313 | 21.6 | 1252 | 86.3 | Consult Sales |
3 | 75 | 2.797 | 71.0 | 3.690 | 93.7 | 28 | 711.2 | 300 | 20.7 | 1200 | 82.7 | Consult Sales |
4 | 100 | 3.766 | 95.7 | 4.840 | 122.9 | 46 | 1168.4 | 263 | 18.1 | 1052 | 72.5 | Consult Sales |
NOTE: In an assembly, the pressure ratings of fittings may be less than hose pressure ratings.
